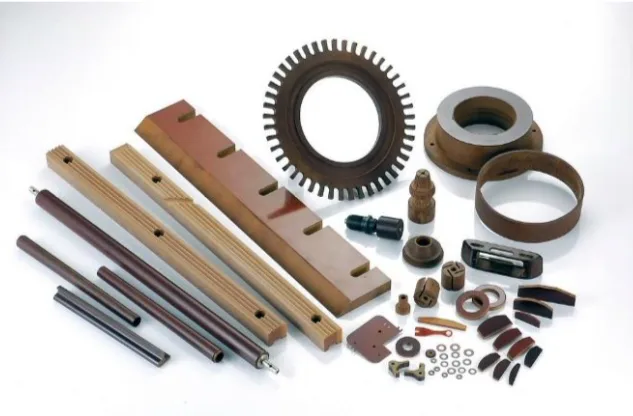

PHENOLIC BAKELITE HYLAM (FABRIC BASE) SHEETS, RODS & TUBES
Phenolic Bakelite, a thermosetting plastic, has been widely used in various industries due to its excellent electrical, mechanical, and thermal properties. It is commonly available in the form of sheets, rods, and tubes, which are graded according to the Indian Standard (IS) 2036 and the National Electrical Manufacturers Association (NEMA) standards. This article aims to provide a comprehensive understanding of these grades and their applications, particularly in Electrostatic Discharge (ESD) sensitive environments.
IS-2036 Grades (P-1, P-2, P-3, and P-4)
The IS-2036 standard classifies phenolic Bakelite into four grades (P-1, P-2, P-3, and P-4) based on their mechanical, electrical, and thermal properties. These grades are widely used in various industries, including electronics, automotive, and aerospace.- P-1 Grade: This grade is characterized by its high mechanical strength, low electrical conductivity, and excellent thermal stability. P-1 grade phenolic Bakelite is commonly used in applications that require high-temperature resistance and low electrical conductivity, such as electrical insulators and high-temperature gaskets.
- P-2 Grade: The P-2 grade offers a balance between mechanical strength, electrical conductivity, and thermal stability. It is suitable for applications that require moderate electrical conductivity and good mechanical strength, such as electrical connectors and switches.
- P-3 Grade: This grade is specifically designed for applications that require high electrical conductivity and good mechanical strength. P-3 grade phenolic Bakelite is commonly used in ESD-sensitive environments, such as electronics manufacturing and assembly, to prevent damage caused by electrostatic discharge.
- P-4 Grade: The P-4 grade offers the highest electrical conductivity among the four grades, making it ideal for applications that require maximum protection against ESD, such as ESD mats and workbenches.
NEMA Grades
The NEMA standard classifies phenolic Bakelite into three grades (NEMA Grade 1, Grade 2, and Grade 3) based on their electrical conductivity and mechanical strength. These grades are widely used in ESD-sensitive environments.- NEMA Grade 1: This grade offers low electrical conductivity and good mechanical strength. It is suitable for applications that require moderate protection against ESD, such as electrical connectors and switches.
- NEMA Grade 2: The NEMA Grade 2 offers a balance between electrical conductivity and mechanical strength. It is suitable for applications that require moderate to high protection against ESD, such as ESD mats and workbenches.
- NEMA Grade 3: This grade offers the highest electrical conductivity among the three grades, making it ideal for applications that require maximum protection against ESD, such as ESD mats and workbenches.
Conclusion
Phenolic Bakelite sheets, rods, and tubes are available in various grades according to the IS-2036 and NEMA standards. These grades offer a range of mechanical, electrical, and thermal properties suitable for different applications. In ESD-sensitive environments, P-3 and P-4 grades according to IS-2036 and NEMA Grade 3 are ideal for providing maximum protection against electrostatic discharge. Understanding these grades and their applications is crucial for selecting the appropriate phenolic Bakelite material for specific industrial needs.SEND QUERY
